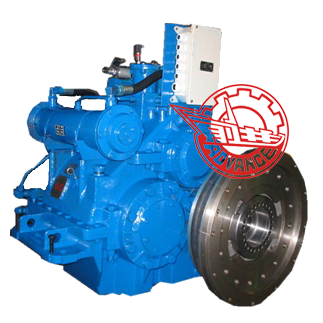

Description: HCQH1600 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. In order to meet working conditions of high-speed ships, the product has innovations on design of volume and weight. Applying quality alloy material and reliable components, it can match high-speed engine to form strong ship power unit.
Main Data:
Input speed | 1600-1900r/min | ||
Reduction ratio | 2.476 | Trans. capacity | 1.204kw/r/min |
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 120KN | ||
Center distance | 340mm | ||
L×W×H | 1035×1110×1038mm | ||
Net weight | 1500kg | ||
Flywheel | SAE21 | ||
Bell housing | NO | ||
Application:HCQH1600 marine gearbox is suitable for medium and large high-speed passenger ship and various special working ships.
Technical Tel:+86-13816230777
