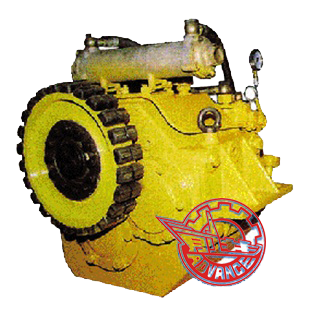

Description: HCQ300 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring
in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2300r/min | ||
Reduction ratio | 1.06、1.21、1.46、1.74、2.05 | Trans. capacity | 0.250kw/r/min |
2.38 | 0.235kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 40KN | ||
Center distance | 203mm | ||
L×W×H | 630×521×680mm | ||
Net weight | 370kg | ||
Flywheel | SAE16 18 14 | ||
Bell housing | SAE0 1 | ||
Application: HC201 marine gearbox is suitable for medium high-speed boats such as yacht, traffic, passenger and cargo boats.
