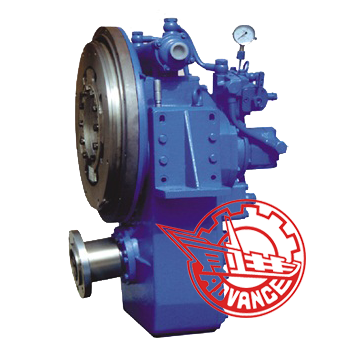

Description:HCV120 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust.
Angle between input and output is 7°at one side, which makes it suitable for special engine layout.
Main Data:
Input speed | 1500-2500r/min | ||
Reduction ratio | 1.509、2.016 | Trans. capacity | 0.10kw/r/min |
2.524 | 0.076kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 25KN | ||
Center distance | 393mm | ||
L×W×H | 502×600×847mm | ||
Net weight | 300kg | ||
Flywheel | SAE 14 11.5 | ||
Bell housing | SAE 1 2 | ||
Application:HCV120 marine gearbox is suitable for small and medium high-speed boats such as yacht, traffic, passenger and cargo boats.
