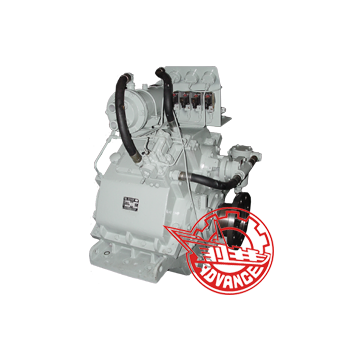

Description: HCQ700 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 1.514、2.00、2.5 | Trans. capacity | 0.554kw/r/min |
2.783 | 0.514kw/r/min | ||
2.958 | 0.49kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 90KN | ||
Center distance | 290mm | ||
L×W×H | 898×1104×1066mm | ||
Net weight | 900kg | ||
Flywheel | SAE16 18 | ||
Bell housing | SAE0 | ||
Application:HCQ700 marine gearbox is suitable for medium and large high-speed ships such as passenger, traffic, and engineering ships.
