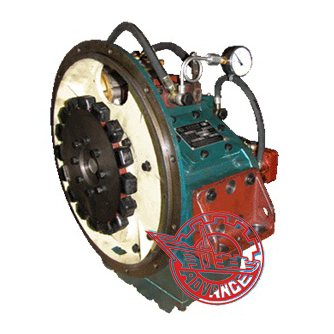

Description: Marine Gearbox MA125 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main Data:
Input speed | 1500-3000r/min | ||
Reduction ratio | 2.03、2.46 | Trans. capacity | 0.020kw/r/min |
3.04 | 0.018kw/r/min | ||
3.57 | 0.016kw/r/min | ||
4.05 | 0.014 kw/r/min | ||
4.39 | 0.013 kw/r/min | ||
4.70 | 0.011 kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 5.5KN | ||
Center distance | 125mm | ||
L×W×H | 291×454×485mm | ||
Net weight | 115kg | ||
Flywheel | SAE11.5、10 | ||
Bell housing | SAE2、3、4 | ||
Application: Gearbox MA125 is suitable for small fishing, transport, traffic and passenger boats.
