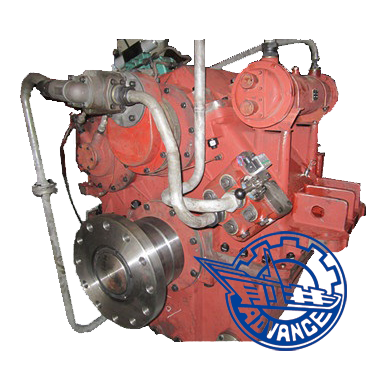

Description: Marine Gearbox HCD1400 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 600-1800r/min | ||
Reduction ratio | 4.04、4.27、4.52、4.8、5.045、5.5 | Trans. capacity | 1.03kw/r/min |
5.857 | 0.778kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 175KN | ||
Center distance | 485mm | ||
L×W×H | 1260*1380*1360mm | ||
Net weight | 2800kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | NO | ||
Marine Gearbox HCD1000 is suitable for passenger, fishing, and various engineering boats.
