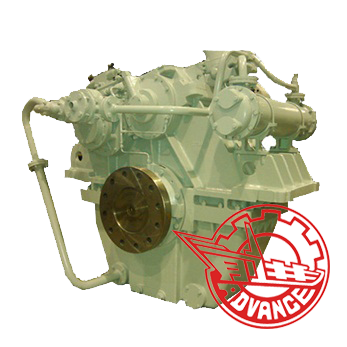

Description: Marine Gearbox HCD2700 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 500-1400r/min | ||
Reduction ratio | 3.65、4.042、4.5、5.05 | Trans. capacity | 2.05kw/r/min |
5.476 | 1.96kw/r/min | ||
6.105 | 1.7kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 280KN | ||
Center distance | 630mm | ||
L×W×H | 1400x1780x1530mm | ||
Net weight | 6000kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | NO | ||
Marine Gearbox HCD2700 is suitable for large fishing, tug and various engineering boats.
