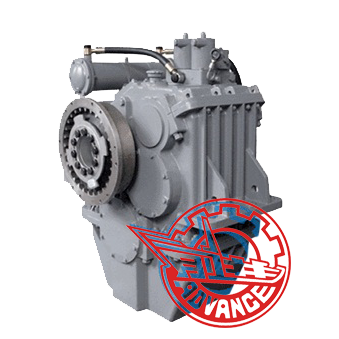

Description: Marine Gearbox HCT800 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact structure, larger ratio, higher loading capacity and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 600-1800r/min | ||
Reduction ratio | 4.95、5.57、5.68、5.93、6.43 | Trans. capacity | 0.625kw/r/min |
6.86 | 0.588kw/r/min | ||
7.33 | 0.551kw/r/min | ||
7.84 | 0.515kw/r/min | ||
8.40 | 0.480kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 140KN | ||
Center distance | 450mm | ||
L×W×H | 1056×1280×1425mm | ||
Net weight | 2700kg | ||
Flywheel | SAE21、18、16 | ||
Bell housing | SAE00、0 | ||
Application: Marine Gearbox MA142 is suitable for small fishing, transport, traffic and passenger boats.
