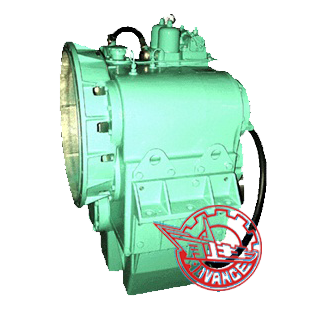

Description: Marine Gearbox HCT400A/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in compact in structure, larger ratio, and higher loading capacity.
Main Data:
Input speed | 1000-2100r/min | ||
Reduction ratio | 8.15、8.69、9.27 | Trans. capacity | 0.331kw/r/min |
9.94 | 0.316 kw/r/min | ||
10.60 | 0.297kw/r/min | ||
11.37 | 0.274 kw/r/min | ||
12.00 | 0.262 kw/r/min | ||
14.00 | 0.204 kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 120KN | ||
Center distance | 465mm | ||
L×W×H | 869×1100×1275mm | ||
Net weight | 1500kg | ||
Flywheel | SAE18、16、14 | ||
Bell housing | SAE0、1 | ||
Application: Marine Gearbox HCT400A/1 is suitable for fishing, tug and various engineering and transport boats.
