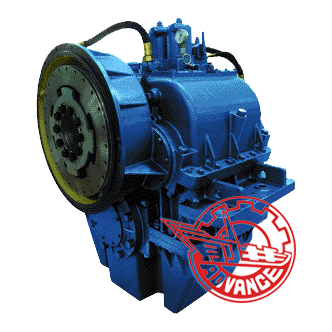

Description: Marine Gearbox HCD800 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 600-1800r/min | ||
Reduction ratio | 3.0、3.429、3.960、4.167、4.391 | Trans. capacity | 0.625kw/r/min |
4.905 | 0.588kw/r/min | ||
5.474 | 0.551kw/r/min | ||
5.889 | 0.515kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 110KN | ||
Center distance | 450mm | ||
L×W×H | 1056x1280x1341mm | ||
Net weight | 2200kg | ||
Flywheel | SAE21、18、16 | ||
Bell housing | SAE00、0 | ||
Application: Marine Gearbox HCD800 is suitable for fishing, tug and various engineering and transport boats.
