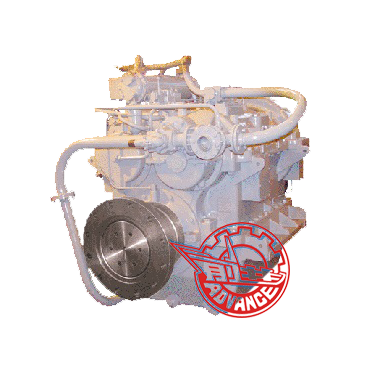

Description: GWD-series marine gearbox is designed of one-stage speed reduction, input and output being diagonally offset and rotating in contrary direction,
possessing functions of ahead and astern, clutching & de-clutching and speed reduction. It features in compact in structure, small in volume and smooth in
operation.
Main Data:
Model | Input Speed | Reduction Ratio | Trans. Capacity | Rated Thrust | Net Weight |
GWD28.30 | 400-1800 | 2.0 | 0.397 | 80 | 1130 |
2.5566 | |||||
3.0 | |||||
3.5714 | |||||
4.0526 | |||||
GWD30.32 | 400-1800 | 1.9688 | 0.537 | 100 | 1350 |
2.5185 | |||||
2.9583 | |||||
3.5238 | |||||
4.0 | |||||
GWD32.35 | 400-1800 | 2.0 | 0.684 | 113 | 2080 |
2.5556 | |||||
3.0 | |||||
3.5714 | |||||
4.0526 | |||||
GWD36.39 | 400-1800 | 2.0323 | 0.919 | 140 | 2250 |
2.4815 | |||||
2.9167 | |||||
3.4762 | |||||
3.9474 | |||||
GWD39.41 | 400-1600 | 2.0 | 1.169 | 175 | 2960 |
2.5357 | |||||
2.960 | |||||
3.50 | |||||
3.95 | |||||
GWD42.45 | 400-1600 | 1.9730 | 1.573 | 220 | 3630 |
2.5484 | |||||
2.9286 | |||||
3.5833 | |||||
4.0 | |||||
GWD45.49 | 400-1400 | 2.0323 | 2.051 | 270 | 4840 |
2.4815 | |||||
3.0870 | |||||
3.4762 | |||||
3.9474 | |||||
GWD49.54 | 400-1200 | 1.9714 | 2.647 | 284 | 7300 |
2.4667 | |||||
3.0 | |||||
3.5217 | |||||
3.9524 | |||||
GWD49.65 | 400-1400 | 5.6316 | 2.051 | 270 | |
GWD52.59 | 400-1200 | 1.9714 | 3.448 | 300 | 8180 |
2.4667 | |||||
3.0 | |||||
3.5217 | |||||
3.9524 | |||||
GWD60.66 | 400-1200 | 2.0 | 4.625 | 450 | 14000 |
2.536 | |||||
2.96 | |||||
3.5 | |||||
3.95 | |||||
GWD66.75 | 300-900 | 1.9714 | 6.99 | 700 | 16500 |
2.4667 | |||||
3.0 | |||||
3.5217 | |||||
3.9524 | |||||
GWD70.76 | 300-900 | 1.941 | 8.111 | 750 | 19000 |
2.536 | |||||
3.0 | |||||
3.5 | |||||
3.95 |
Application:GWD-series marine gearbox is widely used in transport, engineering and fishery boats.
Technical : Note: If any request, special order is optional for product with special ratio
